Samuel Beckett Civic Campus
       
     
Samuel Beckett Civic Campus

Samuel Beckett Civic Campus is a vibrant new Civic Campus for a diverse community on an 18-acre site along Ballyogan Road, in south county Dublin. The ensemble of buildings is organised around a new landscaped Civic Plaza to accommodate outdoor public events, and embraces a new public linear park. The phased project comprises a Library & Community Building including a Creche, temporary changing areas, Dance & Exercise Studios (Phase 1 complete), a Multi-Purpose Sports Building (Sports Hall, Swimming Pool, Dance Studios and Gym, currently at tender stage), all served by a shared Energy Centre. Integrated into the landscaped masterplan are sports pitches, play and skate areas, recreational pathways, rainwater attenuation pond etc. A Sustainable design approach incorporates natural daylighting and ventilation strategies, along wih the use of natural materials to create and promote healthy environments.

Building orientation has been optimized to benefit from passive solar gain to reduce energy load and wind direction to enhance natural ventilation. Natural cross-ventilation of internal spaces is optimized with ventilation openings on the external facades and roof strategically placed for this purpose, with high floor to ceiling dimensions enhancing air movement. In order to minimize dependence on artificial lighting, natural day-lighting of the internal spaces of the building have been maximized - the facades are designed for maximum day-light penetration, whilst incorporating different degrees of screening and solar protection according to their use and orientation. The use of naturally occurring energy sources has been maximized, with photovoltaic cells provided on the roofs which will harness solar energy while passive wind energy is used to enhance natural ventilation. Windmill turbines adjacent to the synthetic pitches along Ballyogan Road will take advantage of South Westerly winds.

The primary material of the Civic Campus buildings is wood, endowing a human scale and proportion, as well as a robustness, that is appropriate to their use. Wood was employed as the primary material for the facades and upper structure of the buildings, simultaneously acting as the internal finish of the spaces created, imbuing them with the psychologically beneficial warmth, colour and aroma of wood.

The primary building structure is a hybrid system, with concrete to 1st floor, and spruce beams & columns with pre-cast concrete slabs above that. The large rooflight shed-type openings were created using Cross laminated pine. The timber structural members and the facade, the breathing skin of the building, are made from a combination of larch, cedar, iroko, and birch, each wood used in locations appropriate to its respective material characteristics.

Photograph : Michael Moran

 Fig. 1  main entrance  Photograph : Michael Moran
       
     

Fig. 1

main entrance

Photograph : Michael Moran

 Fig. 2  entrance foyer  Photograph : Michael Moran
       
     

Fig. 2

entrance foyer

Photograph : Michael Moran

 Fig. 3  facade detail  Photograph : Michael Moran
       
     

Fig. 3

facade detail

Photograph : Michael Moran

Samuel Beckett Civic Campus, Ballyogan, Dublin.  Completed 2016.  area 3000 sqm
       
     
Samuel Beckett Civic Campus, Ballyogan, Dublin. Completed 2016. area 3000 sqm

Fig. 4

facade detail

Photograph : Peter Maybury

 Fig. 5  interior structure and facade detail  Photograph : Michael Moran
       
     

Fig. 5

interior structure and facade detail

Photograph : Michael Moran

 Fig. 6  interior facade and structure  Photograph : Michael Moran
       
     

Fig. 6

interior facade and structure

Photograph : Michael Moran

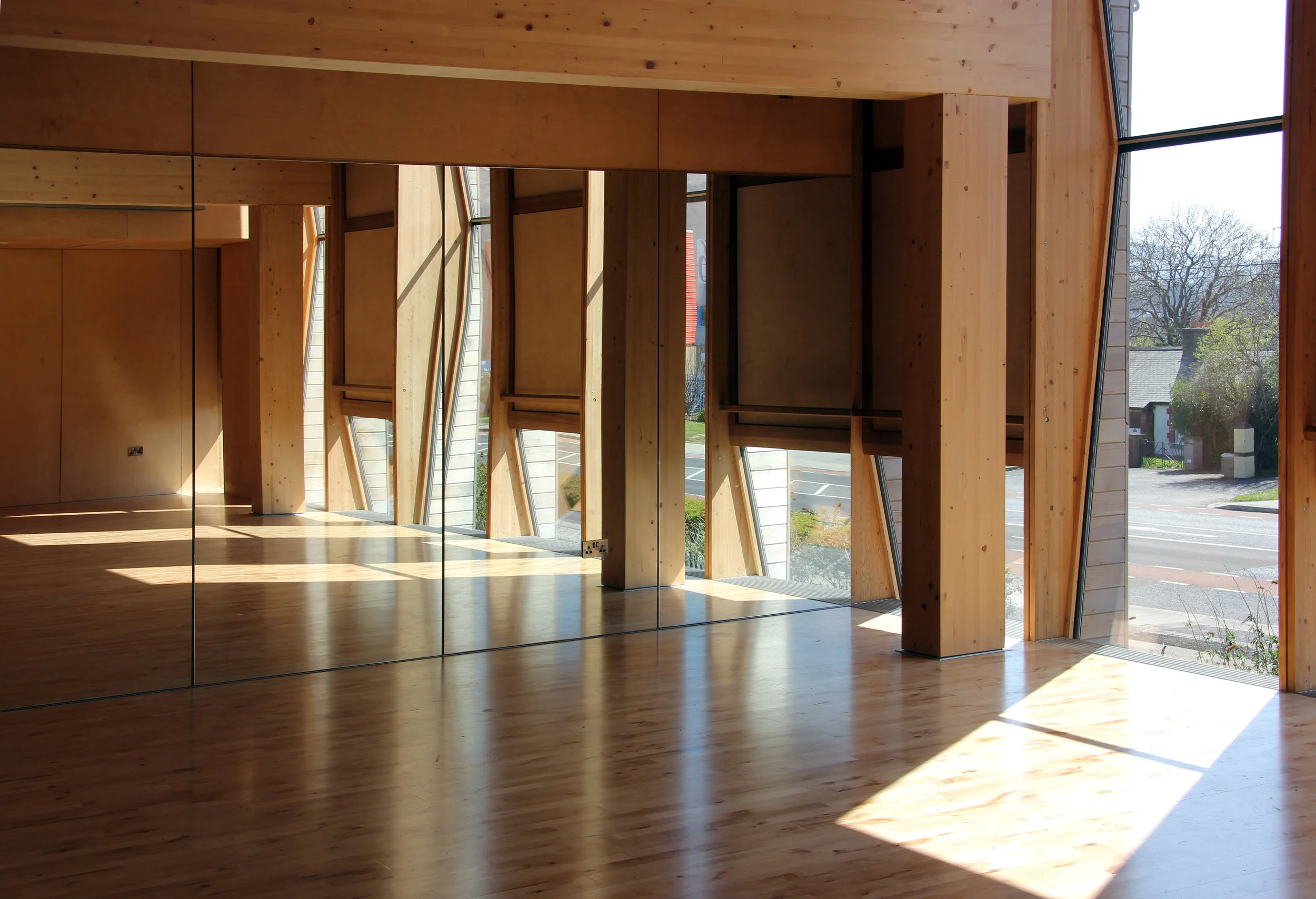

 Fig. 7 interior of library  Photograph : Peter Maybury
       
     

Fig. 7
interior of library

Photograph : Peter Maybury

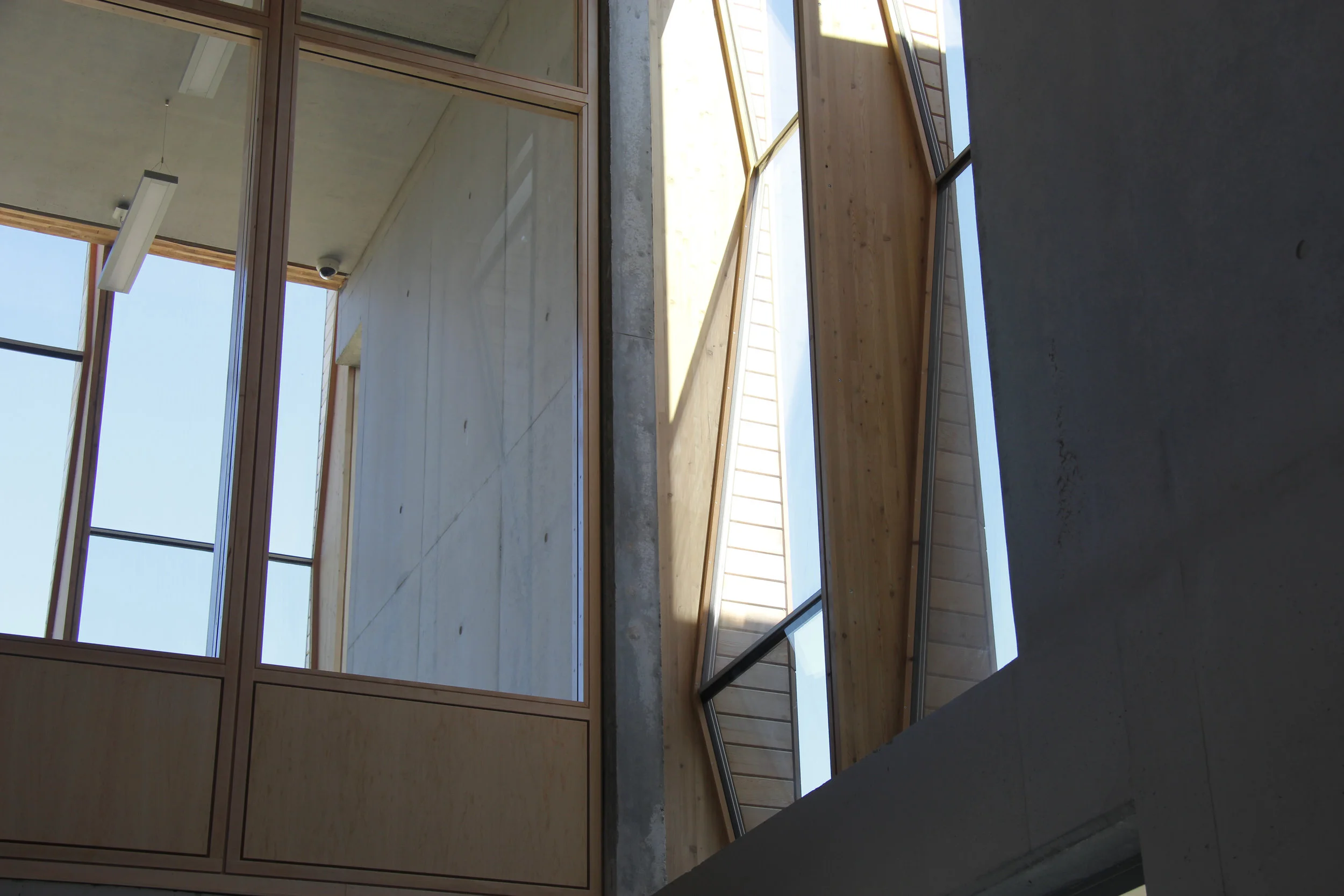

 Fig. 8 main entrance internal detail  Photograph : Peter Maybury
       
     

Fig. 8
main entrance internal detail

Photograph : Peter Maybury

 Fig. 9  north facade viewed from playing pitches  Photograph : Michael Moran
       
     

Fig. 9

north facade viewed from playing pitches

Photograph : Michael Moran

 Fig. 10  east facade  Photograph : Michael Moran
       
     

Fig. 10

east facade

Photograph : Michael Moran

 Fig. 11  south facade viewed from ballyogan road
       
     

Fig. 11

south facade viewed from ballyogan road

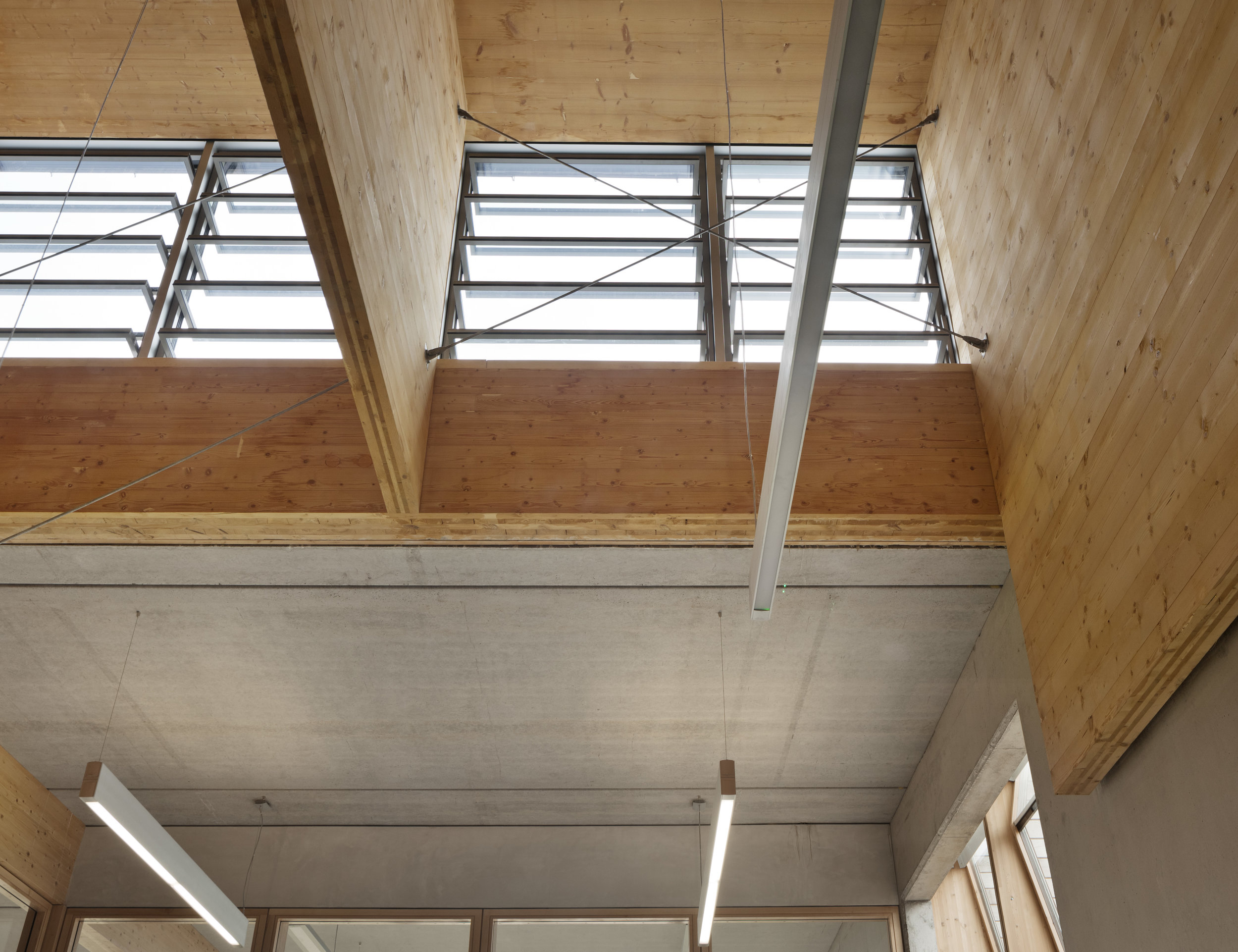

 Fig. 12  roof light vent detail, timber and concrete hybrid structure  Photograph : Michael Moran
       
     

Fig. 12

roof light vent detail, timber and concrete hybrid structure

Photograph : Michael Moran

 Fig. 13  light and ventilation atrium  Photograph : Michael Moran
       
     

Fig. 13

light and ventilation atrium

Photograph : Michael Moran

 Fig. 14  light and ventilation atrium  Photograph : Michael Moran
       
     

Fig. 14

light and ventilation atrium

Photograph : Michael Moran

 Fig. 15  interior  Photograph : Michael Moran
       
     

Fig. 15

interior

Photograph : Michael Moran

 Fig. 16  community room entrance  Photograph : Michael Moran
       
     

Fig. 16

community room entrance

Photograph : Michael Moran

 Fig. 17  Detail at cedar shingles and glass solar shade  Photograph : Peter Maybury
       
     

Fig. 17

Detail at cedar shingles and glass solar shade

Photograph : Peter Maybury

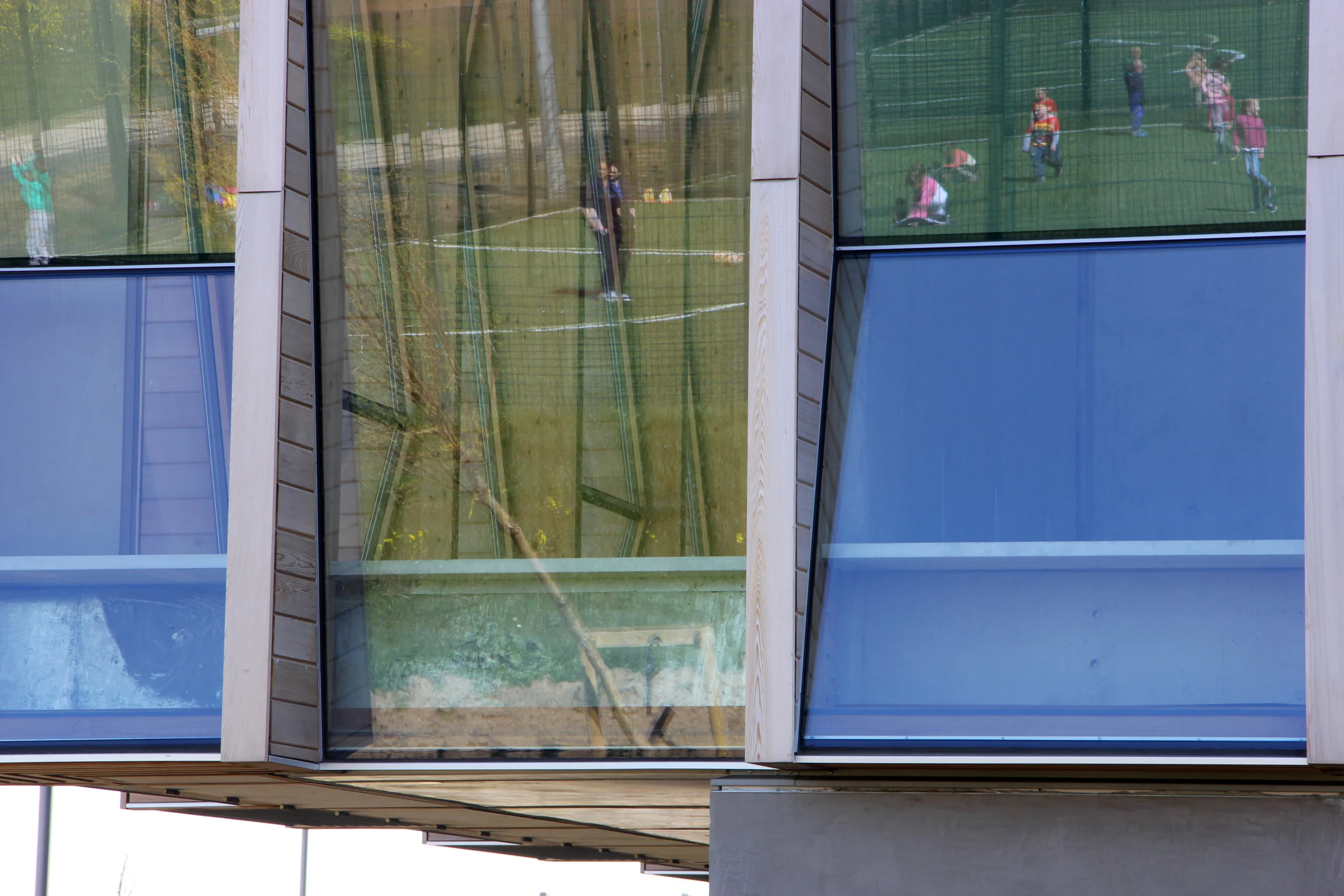

 Fig. 18  Facade detail, reflecting context  Photograph : Peter Maybury
       
     

Fig. 18

Facade detail, reflecting context

Photograph : Peter Maybury

 Fig. 19  Facade detail, reflecting context  Photograph : Peter Maybury
       
     

Fig. 19

Facade detail, reflecting context

Photograph : Peter Maybury

 Fig. 20  Facade detail, from interior  Photograph : Peter Maybury
       
     

Fig. 20

Facade detail, from interior

Photograph : Peter Maybury
